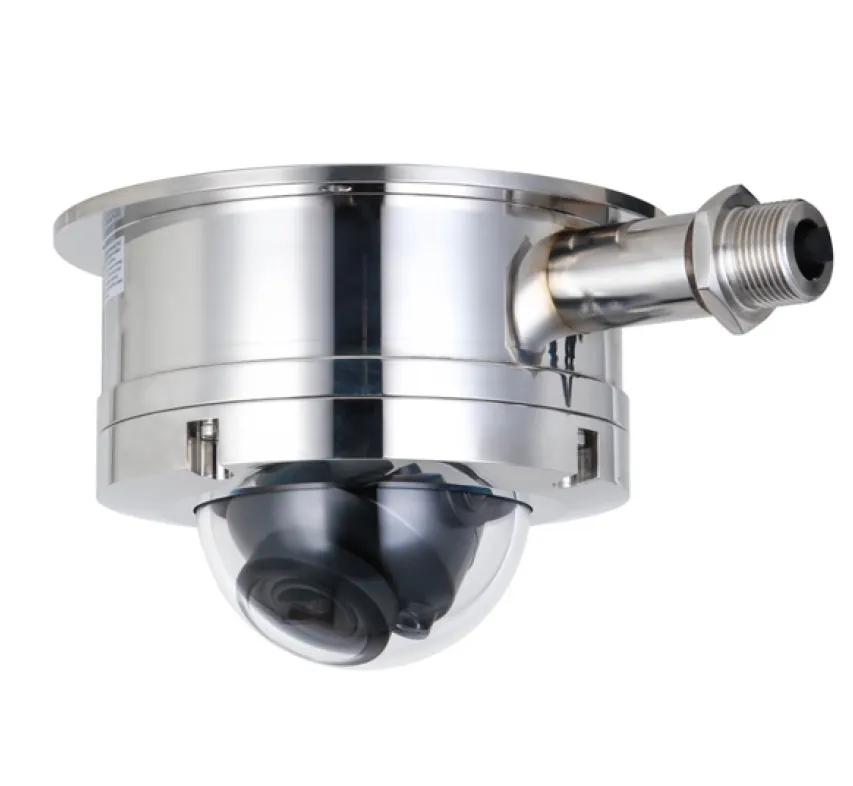

DH-IPC-HDEW8841R-Z
8MP Explosion Proof IR Dome WizMind Network Camera
* The parameters and datasheets below can only be applied to 8841-S2 series.
- 8-MP 1/2.8" CMOS image sensor, low illuminance, high image definition.
- Outputs max. 8 MP (3840 × 2160) @25/30 fps.
- Built-in IR LED, and the max. illumination distance is 40 m.
- ROI, SMART H.264+/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
- Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
- Supports the AFSA(Anti-flicker Self-adaption) function, which automatically eliminates flicker.
- Face detection: Track, snapshot, snapshot optimization, optimal face snapshot upload, face enhancement, face exposure, and face attributes.
- People counting: People counting in area, queue management, and entered/exited people counting; generating and exporting report (day/ month/year).
- Intelligent monitoring: Tripwire, intrusion, fast moving (the three functions support the classification and accurate detection of vehicle and human), abandoned object, missing object, loitering detection, people gathering, parking detection, heat map, and face detection.
- Alarm: 3 in, 2 out; audio: 1 in, 1 out; RS-485; supports max. 256 G Micro SD card.
- 12 VDC/PoE power supply, easy for installation.
- IP68 and IK10 protection.
- Explosion-proof mark II 2 G Ex db IIC T6/T5 Gb; II 2 D Ex tb IIIC T80°C/ T100°C Db.
- 316 stainless steel casing, 2 m cable.
- ATEX and IECEx Certification.
- SMD 3.0.
Alternative produkter
These other products might interest you
Spesifikasjoner
| Kamera | |
|---|---|
| Produsent | Dahua |
| Kameratype | Dome |
| Oppløsning | 8MP |
| Bildebrikke | 1/2.8" |
| Lux | 0.0007 |
| Maks IR lengde | 40m |
| WDR | 120 dB |
| Linse | |
|---|---|
| Optikk: Fast / Variabel | Variabel |
| F-verdi | F1.5 |
| Brennvidde | 2.7mm - 13.5mm |
| Størrelse / Miljø | |
|---|---|
| Miljø | Maritimt / Anti korrosjon, EX / Eksplosjonssikkert |
| IP klassifisering | IP68 |
| Vandalsikring | IK10 |
| WDR Range | 120-129 |
| I/O | |
|---|---|
| Alarm I/O | Ja |
| Nettverk | |
|---|---|
| PoE Standard | 802.3af PoE |
| Lagring | |
|---|---|
| SD kort | Micro SD |
| Andre | |
|---|---|
| Belysning | IR LED |
