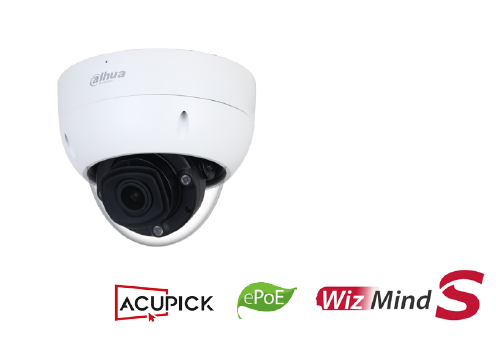

IPC-HDBW5442H-ZHE-2712F-DC12AC24V-S3
4MP IR Vari-focal Dome WizMind Network Camera
* The parameters and datasheets below can only be applied to 5442-Z-S3 series.
- 4-MP 1/1.8" CMOS image sensor, low luminance, and high definition image.
- Outputs max. 4 MP (2688×1520) @25/30 fps.
- Built-in IR LED, and the max. illumination distance is 40 m.
- ROI, SVC, SMART H.264+/H.265+, AI H.264/H.265, encoding after filter, flexible coding, applicable to various bandwidth and storage environments.
- Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
- With deep learning algorithm, it supports: video metadata, smart sound detection, IVS, face detection, smart object detection, and people counting, etc.
- Alarm: 3 in, 2 out; audio: 1 in, 1 out; RS-485; analog output; power output; supports max. 1 TB Micro SD card, built-in dual Mic.
- 24 VAC/12 VDC/PoE power supply; ePoE.
- IP67 and IK10 protection, heater.
- SMD 3.0.
- Anti-corrosion model optional.
Spesifikasjoner
| Kamera | |
|---|---|
| Produsent | Dahua |
| Kameratype | Dome |
| Oppløsning | 4MP |
| Bildebrikke | 1/1.8” |
| Lux | 0.0006 |
| WDR | 140 dB |
| Linse | |
|---|---|
| Optikk: Fast / Variabel | Variabel |
| Brennvidde | 2.7mm - 12.0mm |
| F-verdi | F1.2 |
| Størrelse / Miljø | |
|---|---|
| Miljø | Utendørs |
| WDR Range | 140+ |
| Vandalsikring | IK10 |
| IP klassifisering | IP67 |
| I/O | |
|---|---|
| Alarm I/O | Ja |
| Nettverk | |
|---|---|
| PoE Standard | 802.3at PoE+, ePoE |
| ePoE | Ja |
| Lagring | |
|---|---|
| SD kort | Micro SD |
| Andre | |
|---|---|
| Belysning | IR LED |
| Varmeelement | Ja |
