IPC-HDW3849H-ZAS-PV-27135-S5

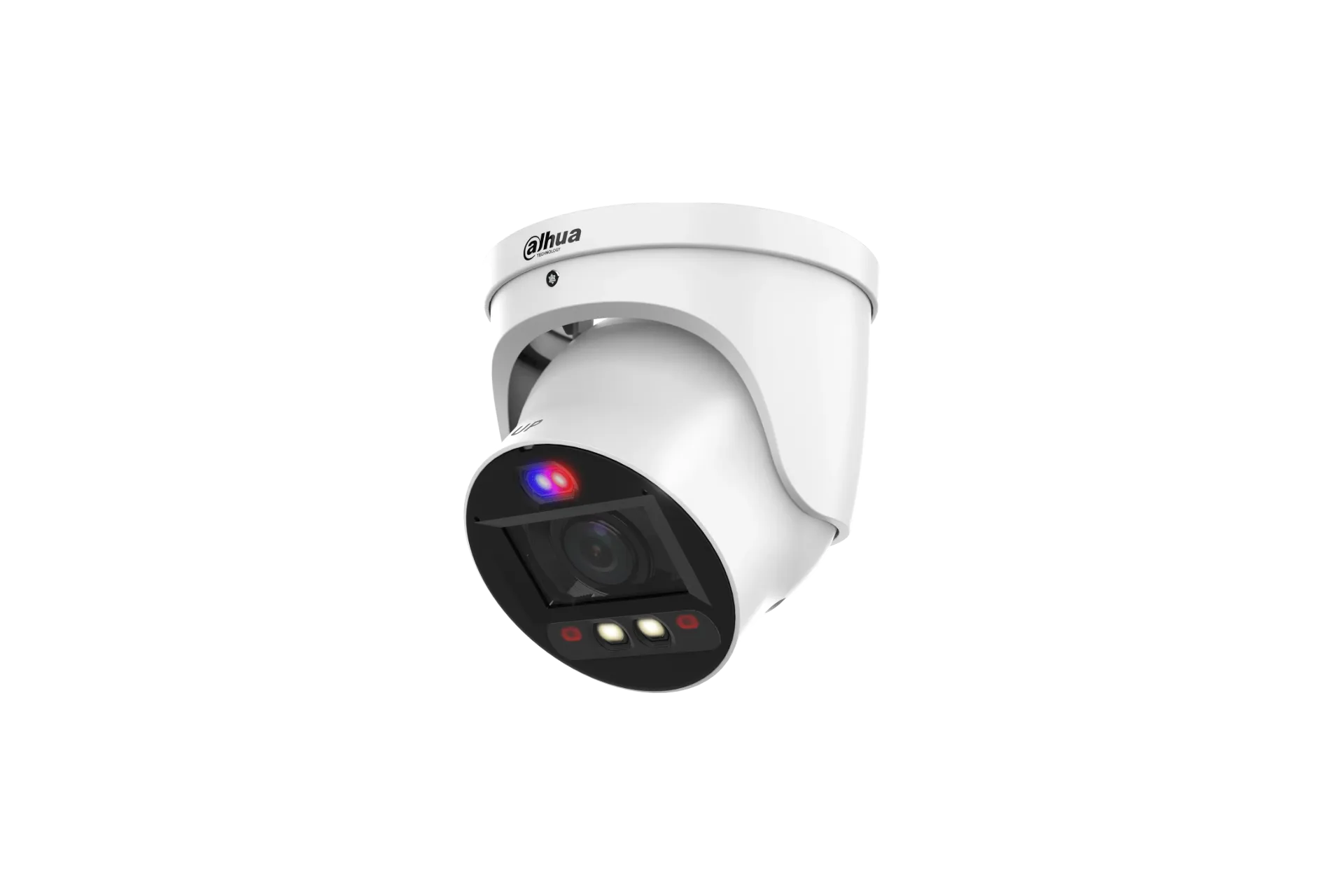

8MP Smart Dual Light Active Deterrence Vari-focal Eyeball WizSense Network Camera
*The parameters and datasheets below can only be applied to 3849-PV-S5 series.
- 8-MP 1/2.8" CMOS image sensor, low luminance, and high definition image.
- Outputs max. 8 MP (3840 × 2160 )@25/30 fps.
- H.265 codec, high compression rate, ultra-low bit rate.
- Built-in warm light and IR LED; the max. IR illumination distance is 50 m and warm light distance is 40 m.
- ROI, SMART H.264+/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
- Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
- Intelligent monitoring: Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human), stay detection, loitering detection; face detection (full image).
- Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
- Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 512 G Micro SD card; built-in dual Mic; 1-ch speaker; support two-way talk.
- 12 VDC/PoE power supply.
- IP67 protection.
- Sound and light alarm (red and blue lights).
- SMD 4.0.
- Supports AI SSA and one-tap arming and disarming.
- SMD area can be set in warm light areas that support triggering alarms.
Spesifikasjoner
| Kamera | |
|---|---|
| Produsent | Dahua |
| Maks IR lengde | 50m |
| Kameratype | Eyeball |
| Oppløsning | 8MP |
| Bildebrikke | 1/2.8" |
| Lux | 0.0008 |
| WDR | 120 dB |
| Linse | |
|---|---|
| Optikk: Fast / Variabel | Fast |
| Brennvidde | 2.7mm - 13.5mm |
| F-verdi | F1.0 |
| Størrelse / Miljø | |
|---|---|
| WDR Range | 120-129 |
| Miljø | Utendørs |
| IP klassifisering | IP67 |
| Lyd | |
|---|---|
| Innebygget høyttaler | Ja |
| Nettverk | |
|---|---|
| PoE Standard | 802.3af PoE |
| Andre | |
|---|---|
| Belysning | IR LED |
