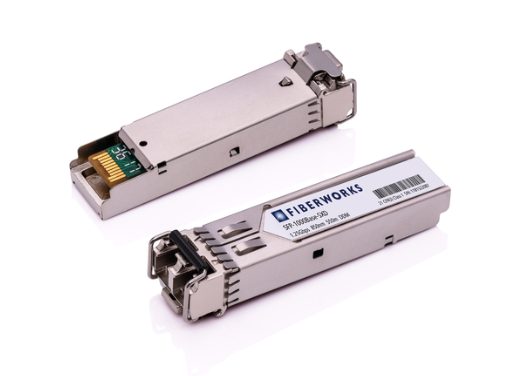

SFP-modul | Fiberworks - SFP 1.25 Gbps GigE, DDM, 550m
SFP-1000Base-SXD-U
SFP-1000Base-SXD-U
Fiberworks
850nm, 9dB, MM, Fiberworks
APPLICATIONS
- 1000Base-SX
- 100Base-SX
- 1G Fibre Channel
FEATURES
- Compatible with Small-Form Pluggable (SFP) MSA
- SFF-8472 Digital Diagnostic Function
- Compatible with IEEE 802.3z
- Compatible with ANSI specifications for Fibre Channel
- Triple data-rate of 100 Mb/s, 1.25 Gb/s and 1.6025 Gb/s
- Operating wavelength at 850 nm
- Duplex LC connector type
- 550 m transmission with 50/125 µm MM fiber
- 270 m transmission with 62.5/125 µm MM fiber
- 2 km transmission distance for 100Mb/s operation
- Compatible with FCC 47 CFR Part, Class B Electromagnetic Interference (EMI)
- Compatible with IEC 61000-4-2 and GR-1089-CORE Electrostatic Discharge (ESD)
- +3.3V single power supply
- operating temperature 0ºC to 70ºC
Teknisk info
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Specifications
| Produsent | Fiberworks |
