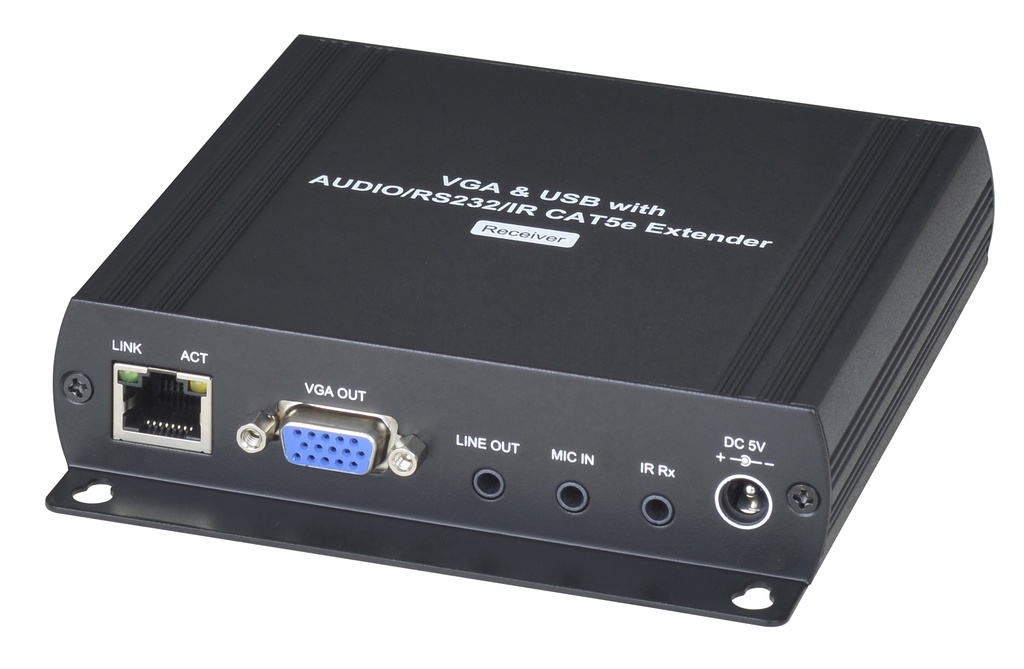

• VKM04-2

• KVM CAT5 e Extender

• VGA & USB with Stereo Audio, RS232 CAT5 e E xtender with Loop Out

•

• VKM04 can extend signals of VGA, USB, Stereo Audio, RS232, and IR all over one cost-effective CAT5e cable which makes installation easily and neatly.
• It provides superior video quality up to 1920 x 1200 resolutions and VGA Loop Out for local display
• The maximum transmission distance is up to 140M over CAT6 cable.
• It is perfect for interactive digital signage, home network integration, industrial control, hospital, class room, security application.

• Extend s VGA, stereo audio, RS232, IR and USB signals over one CAT5 e /CAT6
• Supports up to 1920 x 1200@60Hz.
• Transmission distance up to 120 M over CAT5e, 140M over CAT6.
• Transmitter unit has built in V GA Loop Out
• Support s tereo audio extension for stereo speakers and microphone etc.
• Support USB 2.0, USB 1.0 & USB 1.1 extension. Ex. Flash /Hard disk, keyboard, mouse etc.
• Support F ull Duplex RS232 data communication.
• Support IR one direction extension, IR carrier frequency: 20 60K Hz.
• Plug and play for easy operation.
• Optional model: SR01 signal repeater for longer distance application.

• Optional model: IR CR01 IR receiver cable for extending distance of IR reception

Installation:
